Air Column Bags

What Are Air Column Bags?

Air column bags are protective packaging solutions designed to safeguard goods during transportation and storage. These bags function as surface cushions, preventing external impacts from damaging the items inside. The structure of the air column bag is composed of multiple air-filled columns, which are engineered to distribute pressure evenly and absorb shocks effectively.

The material used in air column bags is a co-extruded nylon film, which combines durability with excellent gas retention properties. This ensures that the bags remain inflated for extended periods, providing consistent protection. The design also incorporates a reverse air shut-off valve, allowing air to enter during inflation but preventing it from escaping.

As a result, air column bags are highly reliable for protecting fragile items, offering both durability and long-lasting performance. Their innovative design makes them a preferred choice for industries requiring secure and efficient packaging solutions.

How does a Air Column Bag look?

Technical Specifications of Air Column Bags From Xuanwang

Parameter	Details
Material Composition	PE+PA Co-extrusion Film
Thickness Options	50μm, 60μm, 65μm, 70μm
Shapes Available	L-Type, Q-Type, U-Type
Customizable Features	Sizes, Thickness, Shapes, Branding (logos)
Key Features	Shockproof, Waterproof, Lightweight, Transparent, Recyclable
Air Retention	Long-lasting airtight design
Inflation Methods	Manual (Hand Pump), Electric (Mini Pump, Air Cushion Machine)
Working Speed (Machines)	Up to 20m/min (e.g., Model Q020 Air Column Bag Making Machine)
Applications	Electronics, Wine Bottles, Glassware, Fragile Items
Environmental Impact	Made from recyclable materials, eco-friendly

What is A L-Type Air Column Bag?

An L-Type Air Column Bag is an innovative protective packaging solution designed to safeguard products—particularly large, flat, or fragile items—during transit and storage. Its unique L-shaped structure consists of multiple interconnected air chambers (columns) that provide superior cushioning and impact resistance, while its asymmetrical design allows it to wrap securely around edges, corners, or one side of a product.

What is A Q-Type Air Column Bag?

A Q-Type Air Column Bag is an innovative protective packaging system designed to provide 360-degree cushioning for fragile and valuable items during transportation and storage. Named for its resemblance to the letter “Q,” this packaging solution completely envelops products with multiple air-filled columns, creating a “diving compartment” structure that offers superior impact resistance.

What is A U-Type Air Column Bag?

A U-Type Air Column Bag is an inflatable packaging solution shaped like a “U” to provide three-sided cushioning for products during shipping and handling. It wraps around the top, bottom, and one side of an item, leaving the opposite side open for easy insertion or inspection—ideal for bulkier or irregularly shaped objects needing secure yet accessible protection.

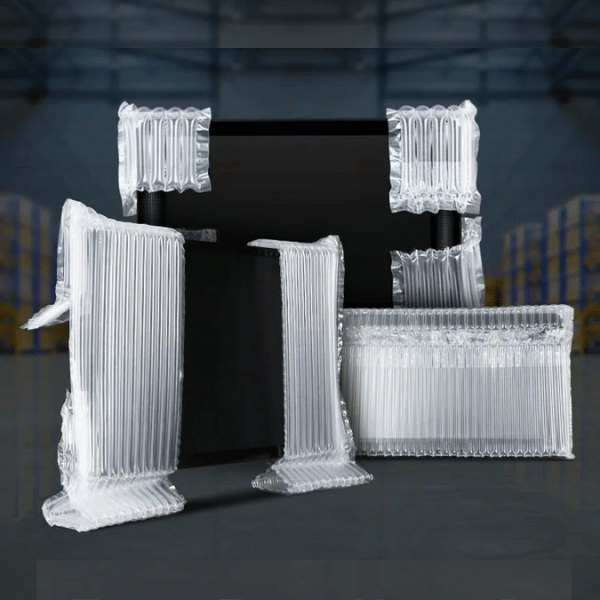

What is A Corner Protector Air Column Bag?

A Corner Protector Air Column Bag is a specialized inflatable packaging solution designed to protect the edges and corners of products during shipping and handling. It combines the cushioning properties of air column technology with targeted corner protection to prevent damage from impacts, drops, or compression.

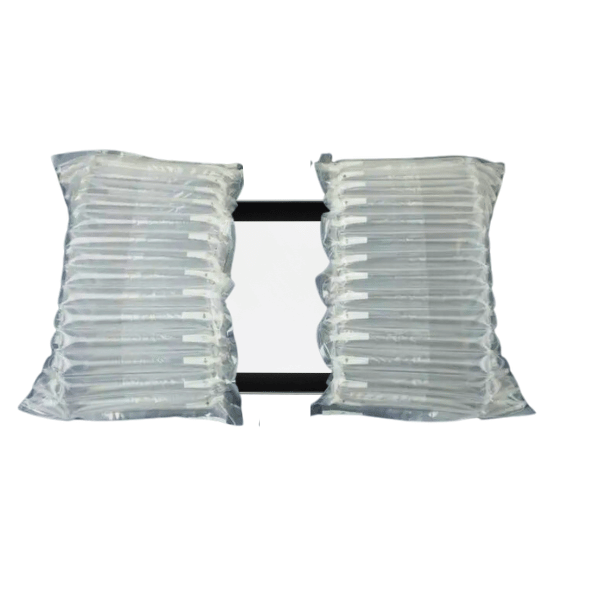

What is A Dual-End Air Column Bag?

A Dual-End Air Column Bag is an advanced inflatable packaging solution designed to provide complete 360° protection for products by sealing both ends of an air column sleeve, creating a fully enclosed cushioning system. It’s particularly ideal for long, fragile, or high-value items that require all-around shock absorption during shipping and handling.

Understanding the Technology Behind Air Column Bags

Air column bags are often referred to as “magic” packaging. When inflated, they seal automatically, allowing air to enter but preventing it from escaping. Remarkably, even if a person stands on an air column bag, it won’t burst. But what gives these bags their extraordinary properties? Let’s dive into the technical principles behind the “magic” of air column bags.

1. Why Don’t Air Column Bags Require Manual Sealing?

The secret lies in the reverse air shut-off valve membrane. During the manufacturing process, two layers of this membrane are laminated as the inner layer of the bag. These membranes serve as air inlet channels for each column during inflation. Once the air pressure reaches a certain level, the reverse air shut-off valve membrane adheres tightly to the outer layer of the bag. This is achieved through pre-designed heat-sealing points, which ensure the air circuit is securely closed by the pressure of the air itself.

This principle is similar to how air pressure works in everyday items like footballs, basketballs, and swimming rings. In all these cases, the incoming air creates pressure that seals the intake valve, preventing air from escaping.

2. What Makes Air Column Bags So Resistant to Pressure?

The impressive pressure resistance of air column bags is due to their material composition. These bags are made from nylon co-extruded film, a cutting-edge material created through advanced multi-die co-extrusion technology. This process combines different materials into a single film, each layer contributing unique properties:

Nylon (PA): Provides exceptional toughness and resistance.
Polyethylene (PE): Offers compressibility and heat-sealing capabilities.

The typical structure of a seven-layer nylon co-extruded film used in air column bags is:

PE-PE-TIE-PA-TIE-PE-PE.

Each layer serves a specific function, and together, they form a durable, high-performance film.

3. How Do Air Column Bags Retain Air for So Long?

One of the standout features of air column bags is their ability to retain air for extended periods—up to six months. This is made possible by the nylon layer in the co-extruded film, which acts as a barrier material with excellent gas retention properties. Even after half a year, the bag maintains enough air to protect its contents from damage.

Conclusion

Now that you understand the technology behind air column bags, it’s easy to see why they’re considered “magical.” From their self-sealing mechanism to their remarkable pressure resistance and long-lasting air retention, these bags are a testament to innovative material science and engineering.
